SKU
HI7630-4805

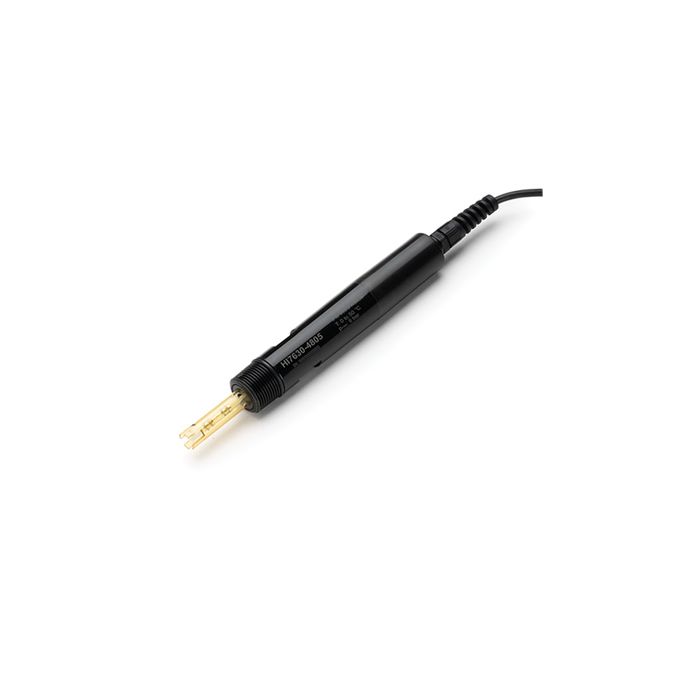

Conductivity and Temperature Industrial Smart Probes

9 270,00 MAD
En stock

dedicated to the HI510 Universal Process Controller

The HI7630-48 series provides an exceptionally stable measurement over a wide measure range and does not require frequent calibration.
An integral temperature sensor measures the process temperature and adjusts the measured conductivity to a reference temperature by applying a temperature coefficient for linear compensation. The result is reliable electrical conductivity (EC), TDS, resistivity, or salinity in percent, PSU, or ppt units.
Probes can be installed directly in-line, immersed in a tank, or flow cell. The conductivity probes are suited for continuous measurement of conductivity and associated parameters required in applications such
as water treatment, drinking water, feedwater condensate, or other clean water applications.



Range

EC: 0 to 999.9 mS/cm TDS: 0 to 400.0 g/L RES: 1.0 Ω to 99.9 MΩ • cm NaCl: 400.0 %NaCl, 42 PSU NaCl, 80 ppt NaCl

Accuracy

± 2% of reading (±0.01 μS/cm or 1 digit, whichever is greater)

Temperature

0.0 to 100.0 °C (32.0 to 212.0 °F)

Temperature accuracy

± 0.5 °C / 1.0 °F

Temperature compensation

Automatic, manual, without compensation

Body

PVDF

Sensor

Four-ring platinum

Maximum pressure

6 bar

Threaded connection

3/4” NPT external thread for insertion mounting

Cable length

5 m, 10m, 15m, 25m, 50m
